Webhooks

The Webhooks screen is where you tell your own systems when something happens in this product: each event becomes a signed HTTPS call to an address you choose, retried until it arrives, and recorded in a log you can read and resend from. Open it from Administration → Integrations → Webhooks. It is for people who administer integrations; everybody else sees a notice instead, because an endpoint is sent records from every site.

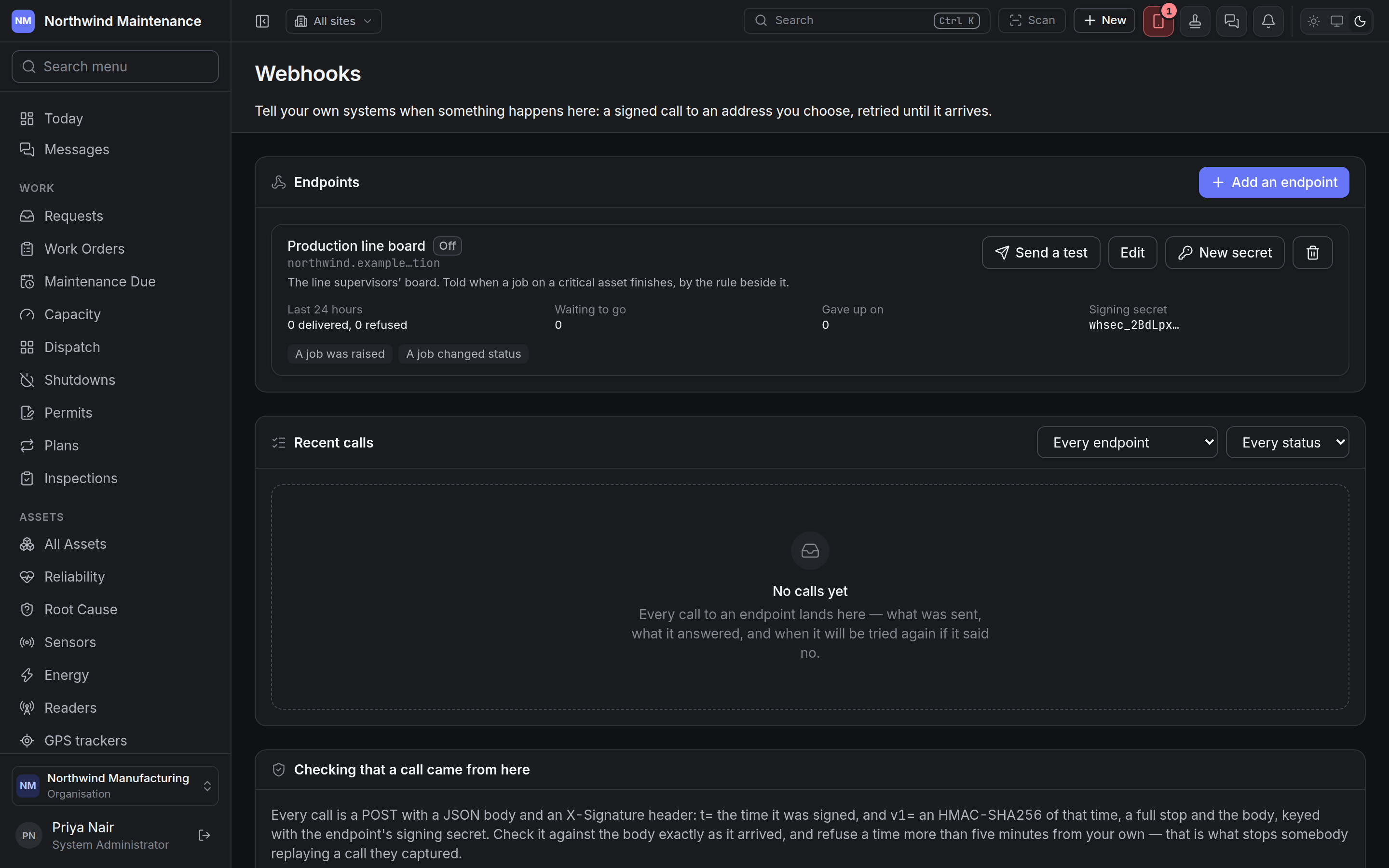

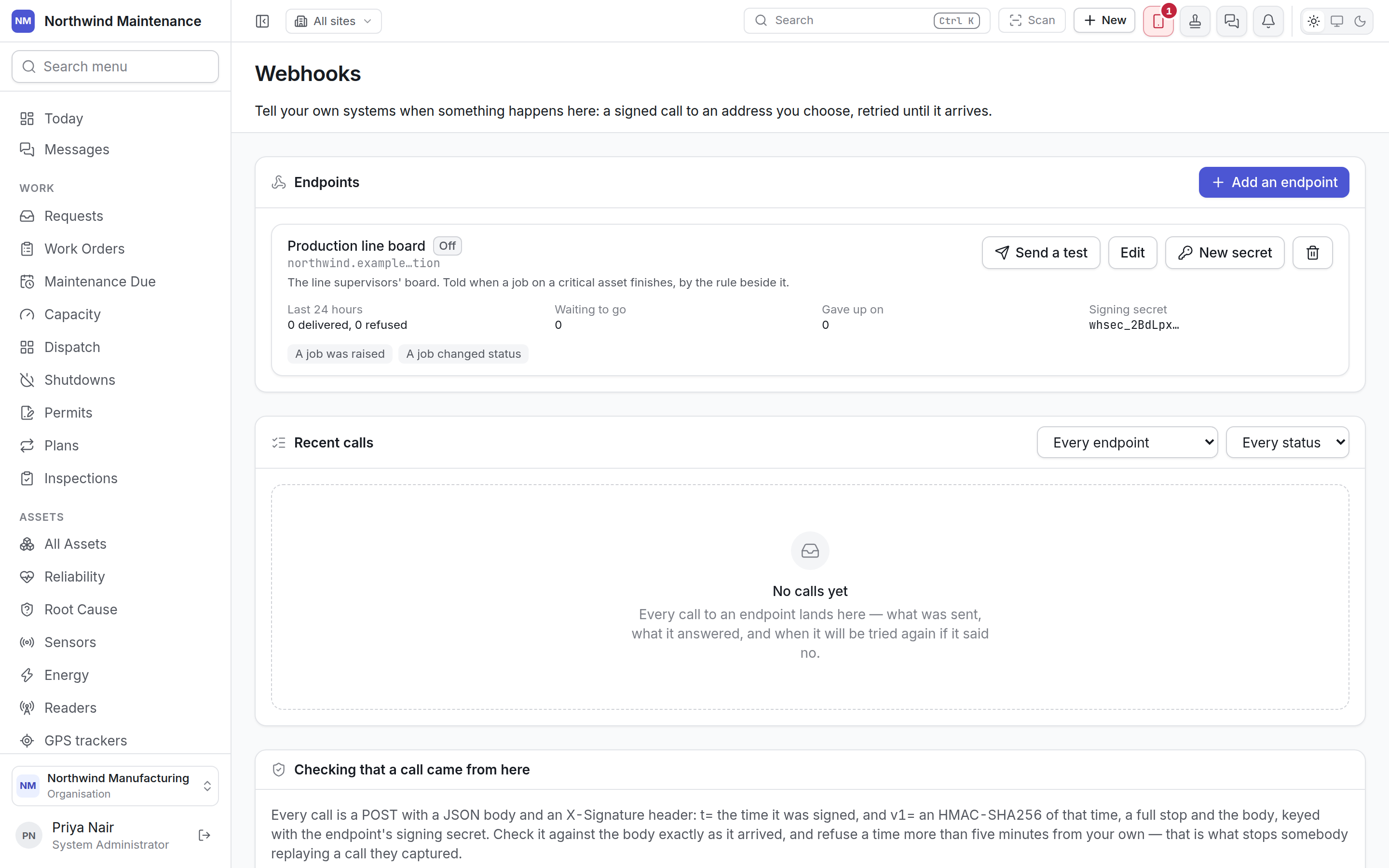

The Webhooks screen with one endpoint and the empty call log

The screen has three sections: Endpoints, Recent calls and Checking that a call came from here.

Endpoints

An endpoint is one address your system listens on — your own server, an automation platform’s hook, a Power Automate trigger — and the events it should be told about. Each endpoint is a card:

Part of the card	What it shows
Name and state	The endpoint’s name and a pill: Working (the last call was delivered), Failing (the last call is being retried or was given up on), Not called yet or Off. Tested appears once a test call has been delivered
Address	The host and the last few characters only. The full address is treated as a credential and never shown again after it is saved
What it is for	The description, if there is one
Last 24 hours	How many calls were delivered and how many were refused
Waiting to go	Calls queued and not yet delivered
Gave up on	Calls that ran out of retries. Shown in red when there are any; resend them from the log
Signing secret	The first characters of the current secret. During a rotation it also says until when the old one also signs
Last refusal	The last call was refused: and the endpoint’s answer, when the last call failed
Events	The events it is subscribed to. With none: Subscribed to nothing — it is called only by a rule that names it, and by a test

Each card has four buttons:

Button	What it does
Send a test	Queues a test call. Its answer appears in Recent calls within a few seconds. A test is tried once
Edit	Opens the endpoint form
New secret	Rotates the signing secret
Bin icon	Deletes the endpoint

Adding or editing an endpoint

Add an endpoint opens New endpoint; Edit opens Edit endpoint with the same fields.

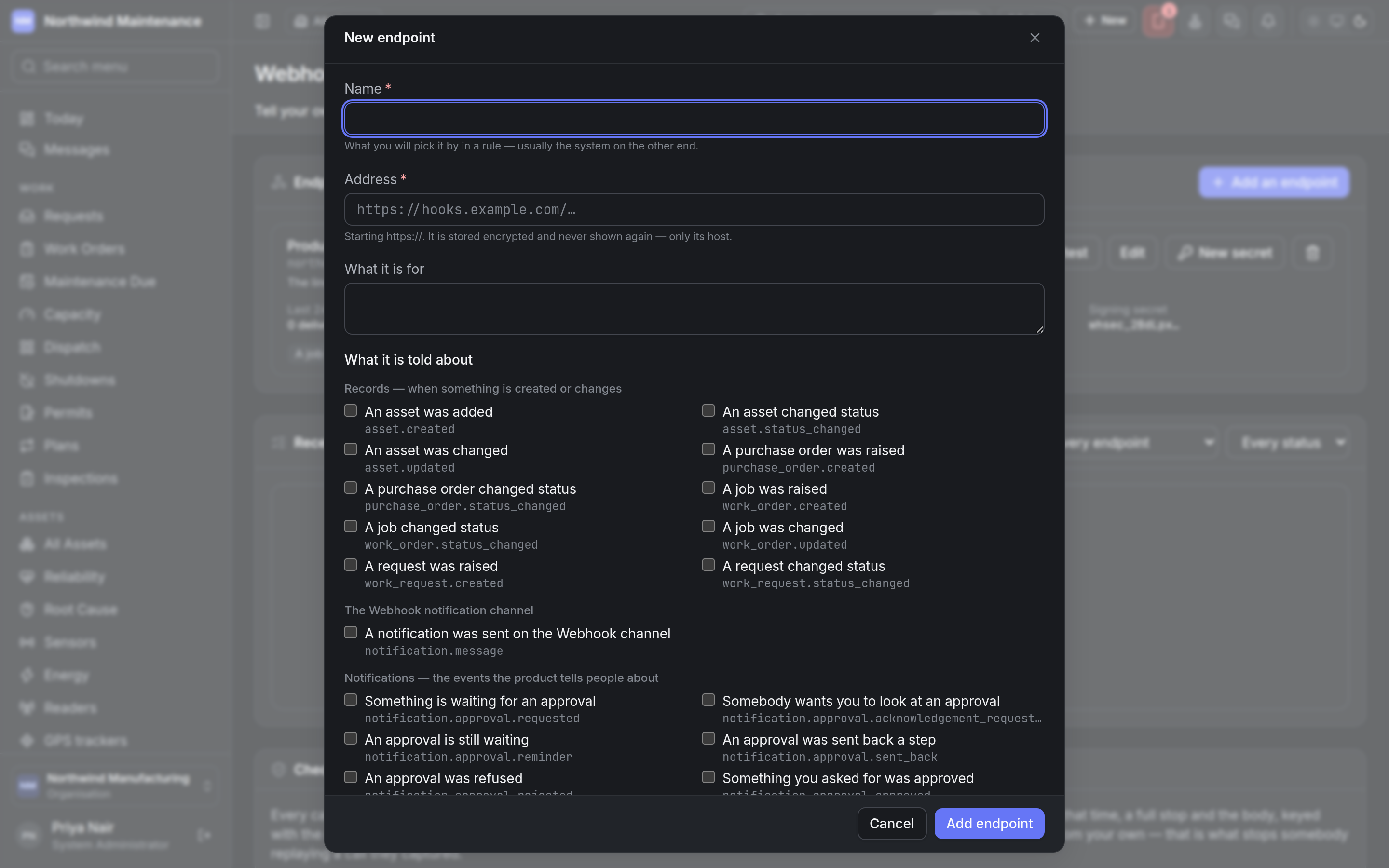

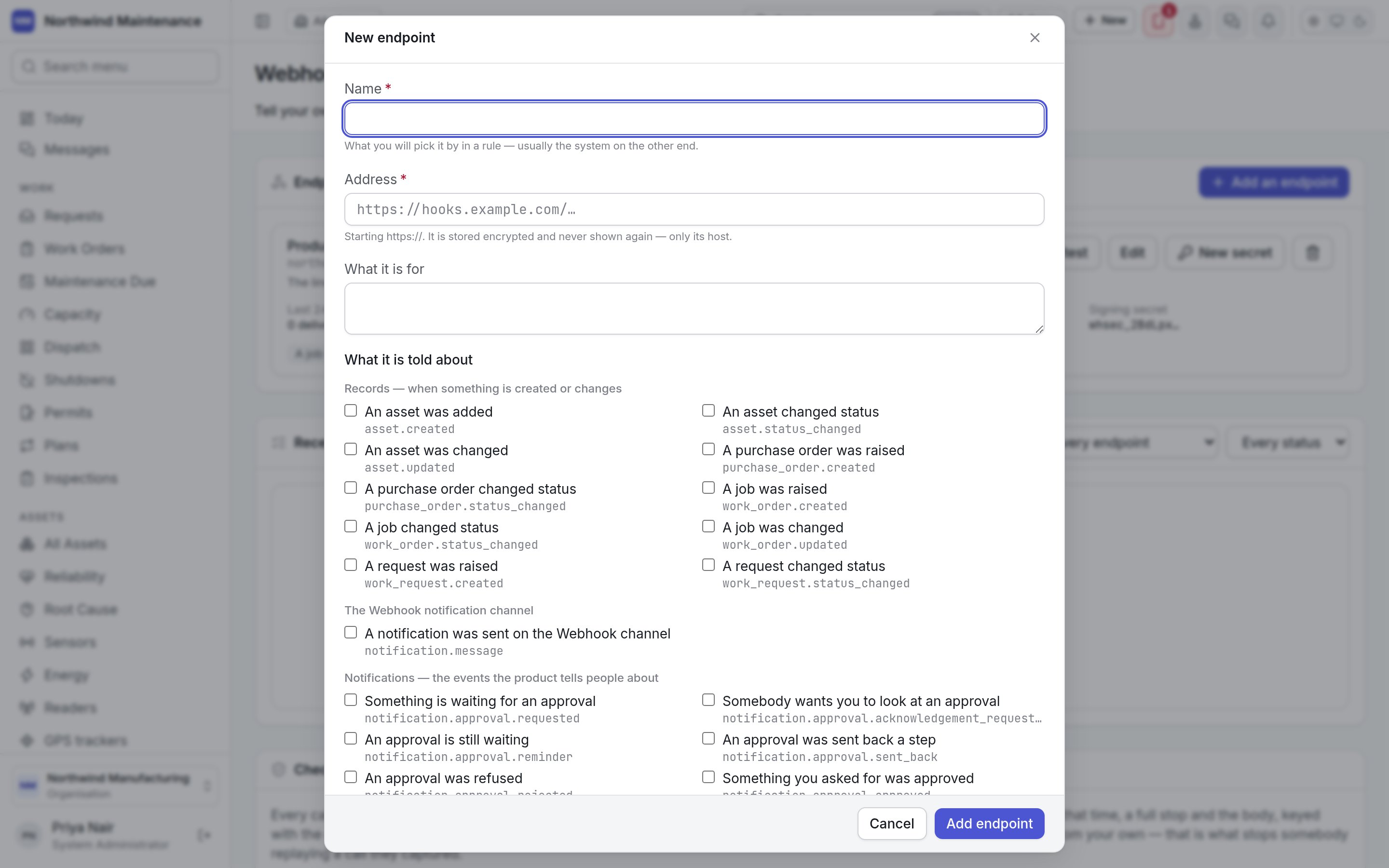

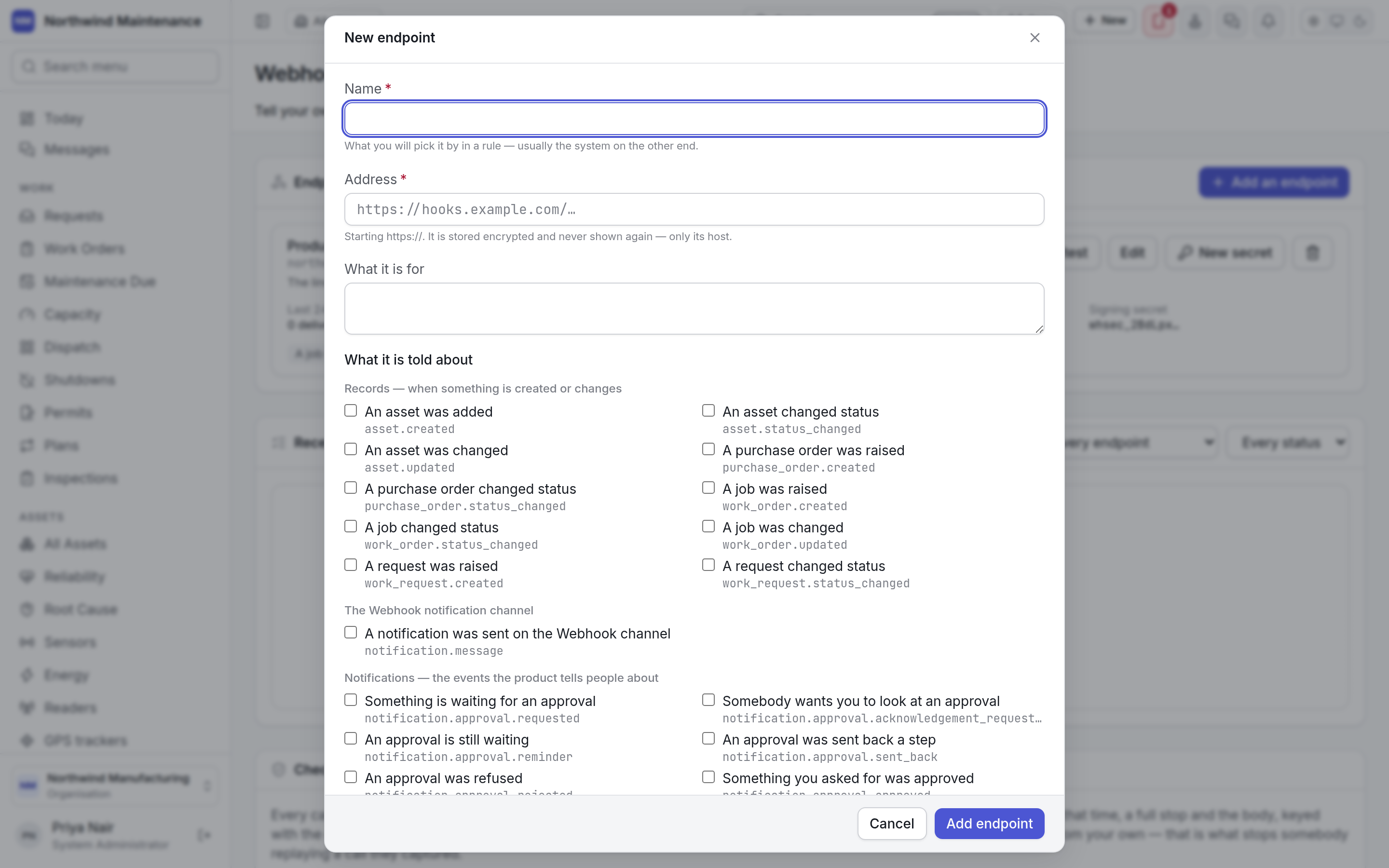

The New endpoint dialog, with events grouped into records, the Webhook channel and notifications

Field	What it means	Notes
Name	What you pick this endpoint by in a rule — usually the system on the other end	Required
Address	The URL calls are posted to	Required when adding. Must start with `https://`. Stored encrypted and never shown again — only its host. When editing, leave it empty to keep the stored address
What it is for	A description, shown on the card	Optional
What it is told about	The events this endpoint receives	Tick any number. Grouped into three families (below). Hover an event for its description
Header	The name of an extra header your system checks, such as `Authorization`	Optional. Only if your system checks a fixed token as well as the signature. It cannot replace the headers the product sends itself
Its value	That header’s value, such as a bearer token	Write-only: nobody can read it back once saved. When one is stored, the hint shows its last characters; leave it empty to keep it
Stop sending the header and forget its value	Removes the extra header	Appears when editing an endpoint that has one
Call this endpoint	Whether the endpoint is called	On by default. Switched off, nothing new is queued for it, and anything already waiting stays waiting — it is not thrown away — until it is switched back on

Add endpoint (or Save) saves it. When you add an endpoint, its signing secret is shown once — see signing secrets.

The events

The event families, and the events in them by default. Only events for modules switched on in your organisation are offered.

Family	What it covers
Records — when something is created or changes	An asset was added, An asset changed status, An asset was changed, A purchase order was raised, A purchase order changed status, A job was raised, A job changed status, A job was changed, A request was raised, A request changed status. The call carries the record as it is now, and for a change, what it was before
The Webhook notification channel	A notification was sent on the Webhook channel — a notification the notification settings or a rule addressed to the Webhook channel
Notifications — the events the product tells people about	The events that raise notifications for people, grouped by module: approvals (requested, reminders, sent back, refused, approved, could not be carried out), assets and custody, calibration, verification rounds, lost and found, bookings, comments, document and contract expiry, energy anomalies, finance postings and budgets, stock below reorder point and stock movements, sensor alerts and device, reader and tracker problems, maintenance plans due or failing to raise their work order, messages, procurement (purchase requests, purchase orders, goods received), corrective action reviews, rule notifications, security (break-glass sign-ins, authenticators removed, recovery codes used) and work orders (raised, assigned, moved, finished, escalated, deadlines at risk, missed or extended)

A rule with a webhook action can also call an endpoint by name, whether or not the endpoint subscribes to anything.

Signing secrets

Every endpoint has a signing secret your system uses to check that a call really came from here.

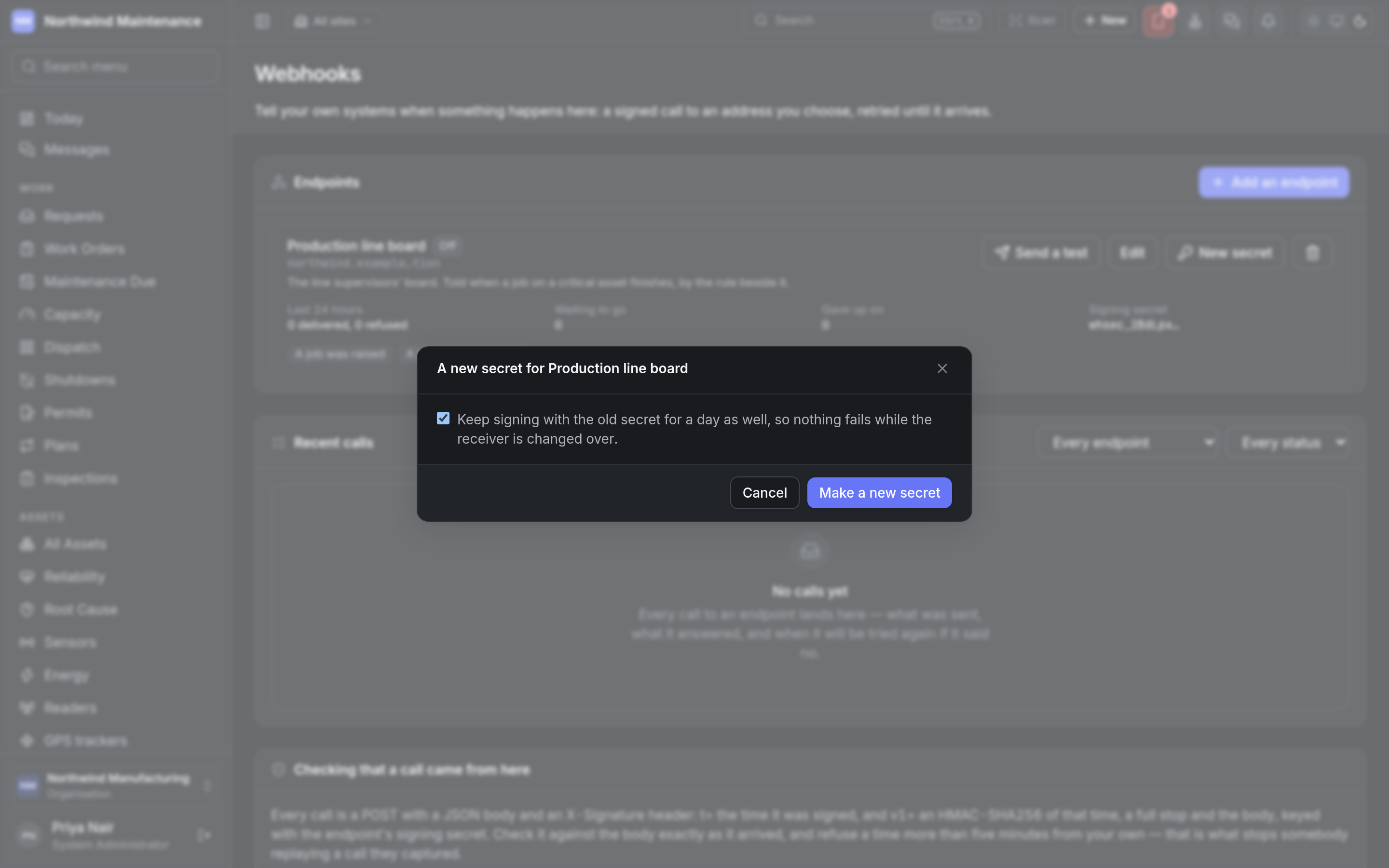

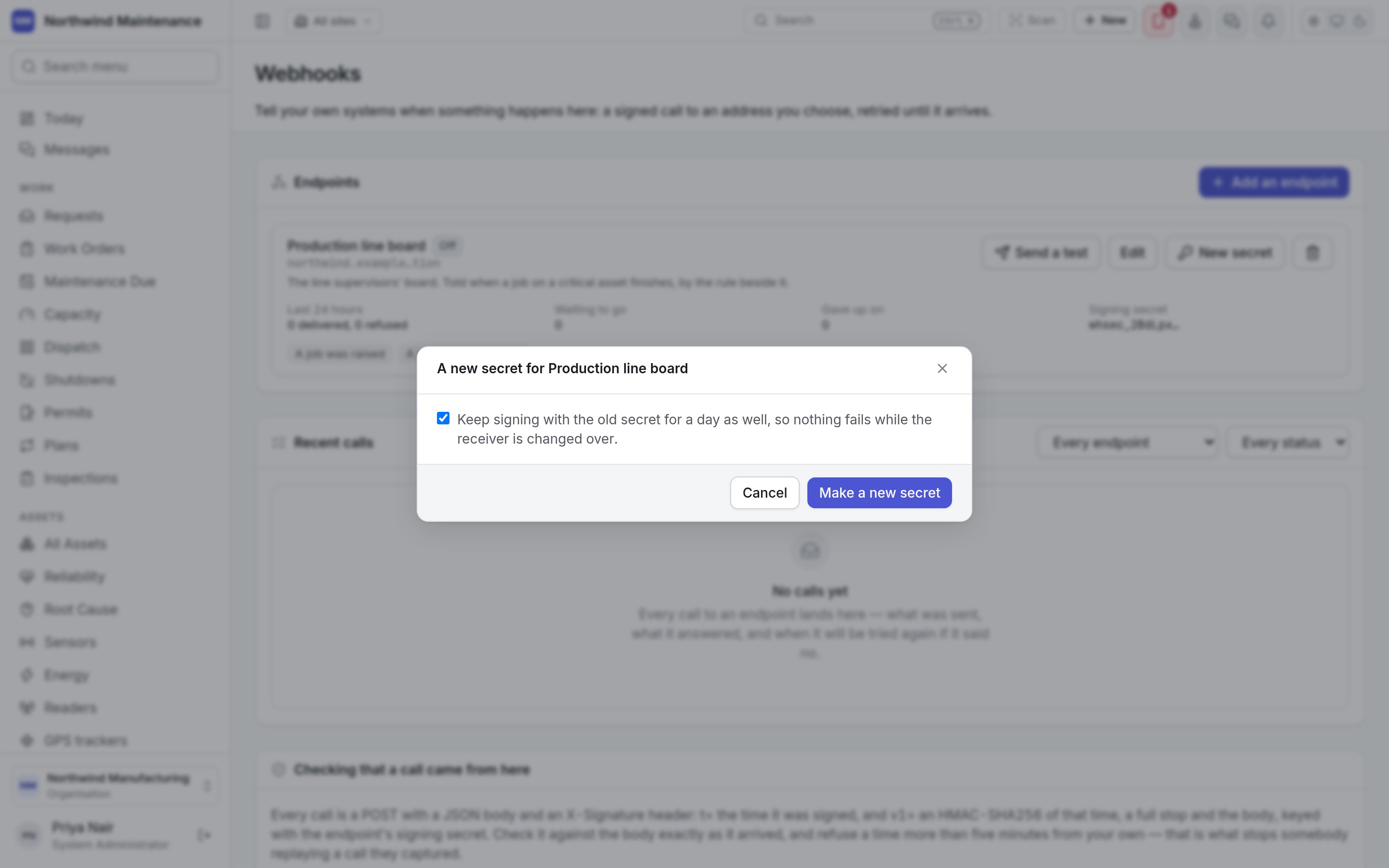

The dialog for making a new signing secret

Field	What it means	Notes
Keep signing with the old secret for a day as well, so nothing fails while the receiver is changed over	Whether calls carry signatures from both secrets for a day	Ticked by default. Untick it only for a secret that has leaked: every call your receiver checks then fails until it has the new secret

Make a new secret creates it. The secret is then shown in Your signing secret, once, with a copy button. Put it in the system that receives the calls before you click I’ve saved it; the dialog cannot be closed any other way, and nothing can read the secret back afterwards. During a rotation it says until when every call is signed with both secrets.

Deleting an endpoint

The bin icon asks you to confirm Delete with the endpoint’s name. Its subscriptions and its log go with it, and anything still waiting to be sent is not sent. Nothing can bring it back; the audit trail keeps the record that it existed.

Recent calls

Every call to every endpoint: what was sent, what it answered, and when it will be tried again. The log refreshes itself, every few seconds while a call is still waiting.

Filter	Options
Which endpoint	Every endpoint, or one endpoint
Which status	Every status, Waiting, Retrying, Delivered or Gave up

Column	What it shows
When	When the event was queued
Event	The event code, with the endpoint’s name underneath
Status	Waiting, Retrying, Delivered or Gave up, with attempt n of m and, while retrying, the next try
Answer	The HTTP status your system answered, its error if it failed, and how long it took
(button)	Send again, on a call that was delivered or given up on

Click a row to see the body your system answered (It answered:), the Event id, and the exact JSON that was sent. Fifty calls are shown at a time; Show older calls loads more.

Checking that a call came from here

Every call is an HTTPS POST with a JSON body and these headers:

Header	Contents
`X-Signature`	`t=` the time it was signed (Unix seconds), and `v1=` an HMAC-SHA256 of that time, a full stop and the body, keyed with the endpoint’s signing secret, in hex. During a rotation it carries two `v1=` values, and either may match
`X-Webhook-Id`	The event’s identity. The same on every retry, and also the body’s `id`, so your system can ignore an event it has already handled
`X-Webhook-Event`	The event code, such as `work_order.status_changed`
`X-Webhook-Timestamp`	The same time as `t=`
Your header	The extra header, if you configured one

To verify a call, compute the HMAC over the body exactly as it arrived, before any JSON parsing, and refuse a timestamp more than five minutes from your own clock — that is what stops somebody replaying a call they captured. The screen has a copyable example in JavaScript.

Retries

Your system answers	What happens
Any 2xx within fifteen seconds	Delivered
Anything else, a timeout or no connection	Tried again after 30 seconds, then 2 minutes, 10 minutes, half an hour, an hour, 3 hours and 12 hours — eight attempts in all, a little under a day — and then given up on and kept in the log, where it can be sent again
`410 Gone`	Stopped at once and not retried

Who can use this

To	You need	Default roles
Open this screen, manage endpoints and secrets, read and resend calls	Configure integrations	System Administrator

Reading the log is reading the records that were sent, from every site, which is why the whole screen sits behind the integrations permission. See roles.

Rules

Calling an endpoint by name when a rule’s conditions are met.

Notifications

The Webhook channel and the events that notify people.
