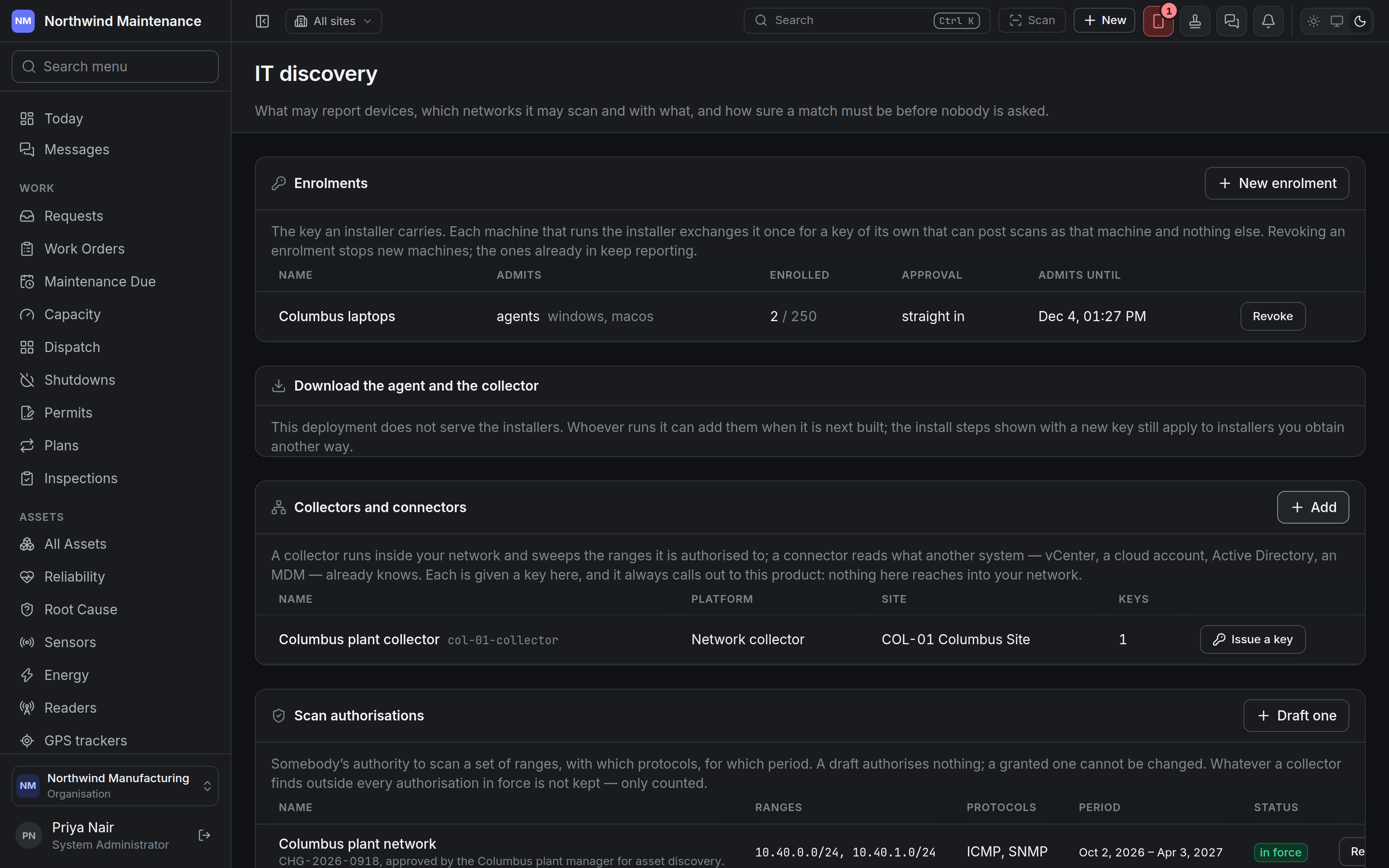

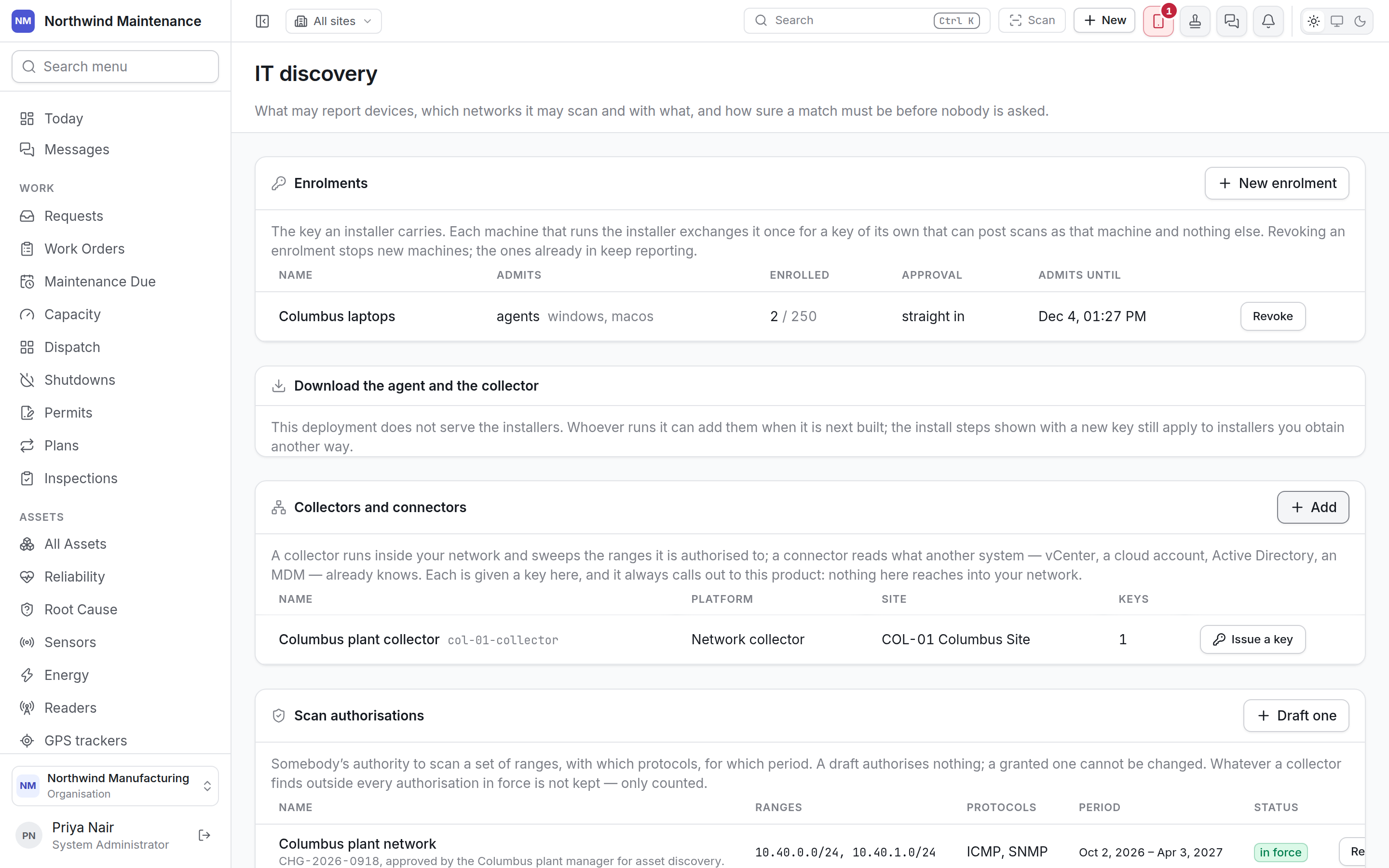

IT discovery settings

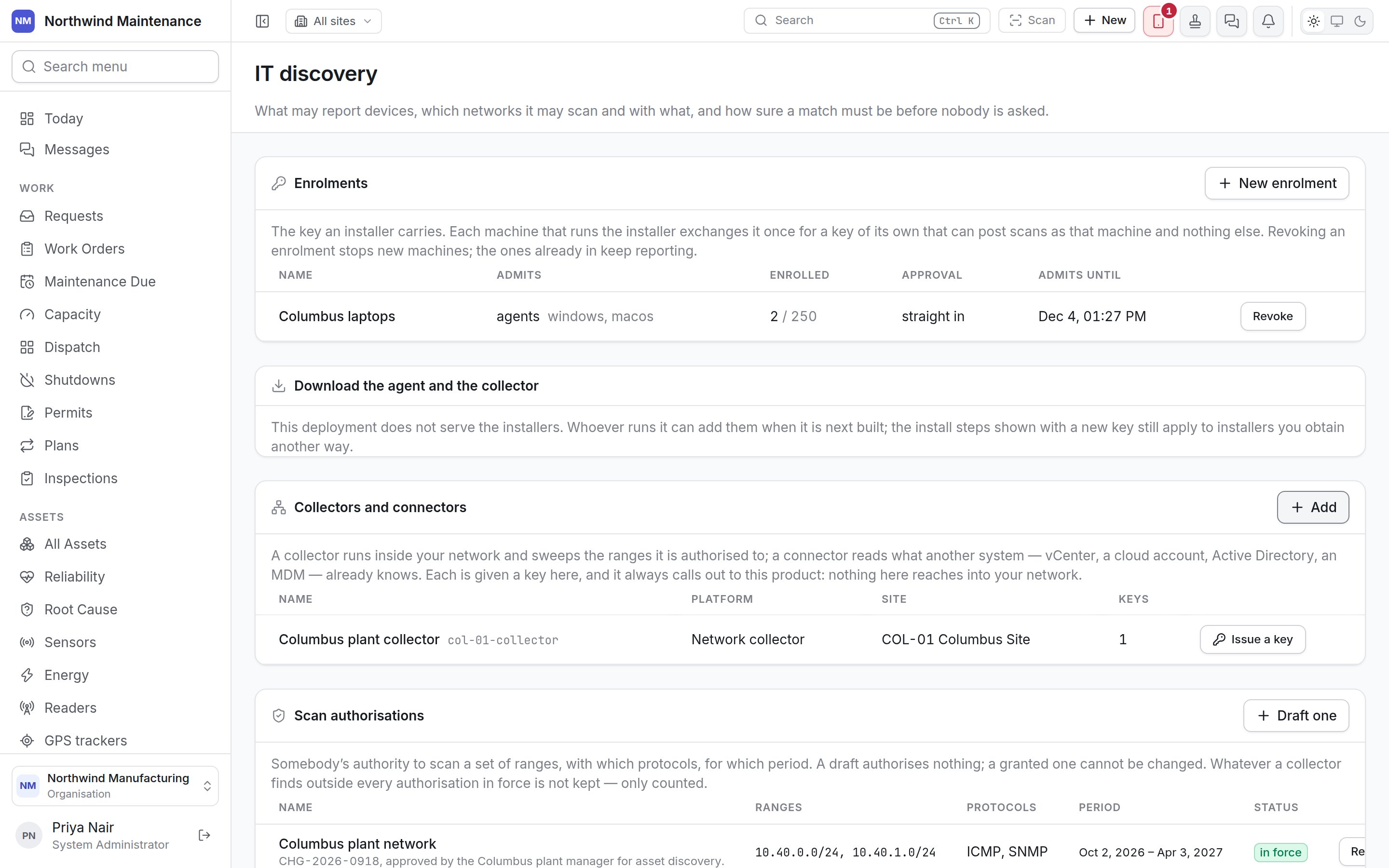

This screen sets up IT discovery: what may report devices to the product, which networks may be scanned and with which credentials, and how sure a match must be before a discovered device is linked to an asset without asking anybody. Open it from Administration → IT discovery. What discovery finds is reviewed on IT discovery, with installed software on software and network links on topology.

If you don’t see this in your navigation, your administrator can switch the module on under Administration → Modules, or it may not be included in your plan.

The sections run in the order somebody setting discovery up meets them. Each section asks for its own permission, so a security team that grants scans and an IT asset team that tunes matching can each be given exactly their half.

Section	Permissions
Enrolments, collectors and connectors	View discovery sources, enrolments and when each last reported; Create enrolments, collectors and connectors, and issue their keys; Approve, suspend and retire discovery sources
Scan authorisations, schedules, exclusions	View which networks may be scanned; Draft network scan authorisations, schedules and exclusions; Grant a network scan authorisation; Revoke a network scan authorisation
Scanning credentials	View where collectors find their scanning credentials; Add and change scanning credential references
Matching and category rules	View how discovered devices are matched to assets; Change match rules, thresholds and automatic creation

Nothing on this screen reaches into your network. Every agent, collector and connector calls out to the product with a key of its own.

Enrolments

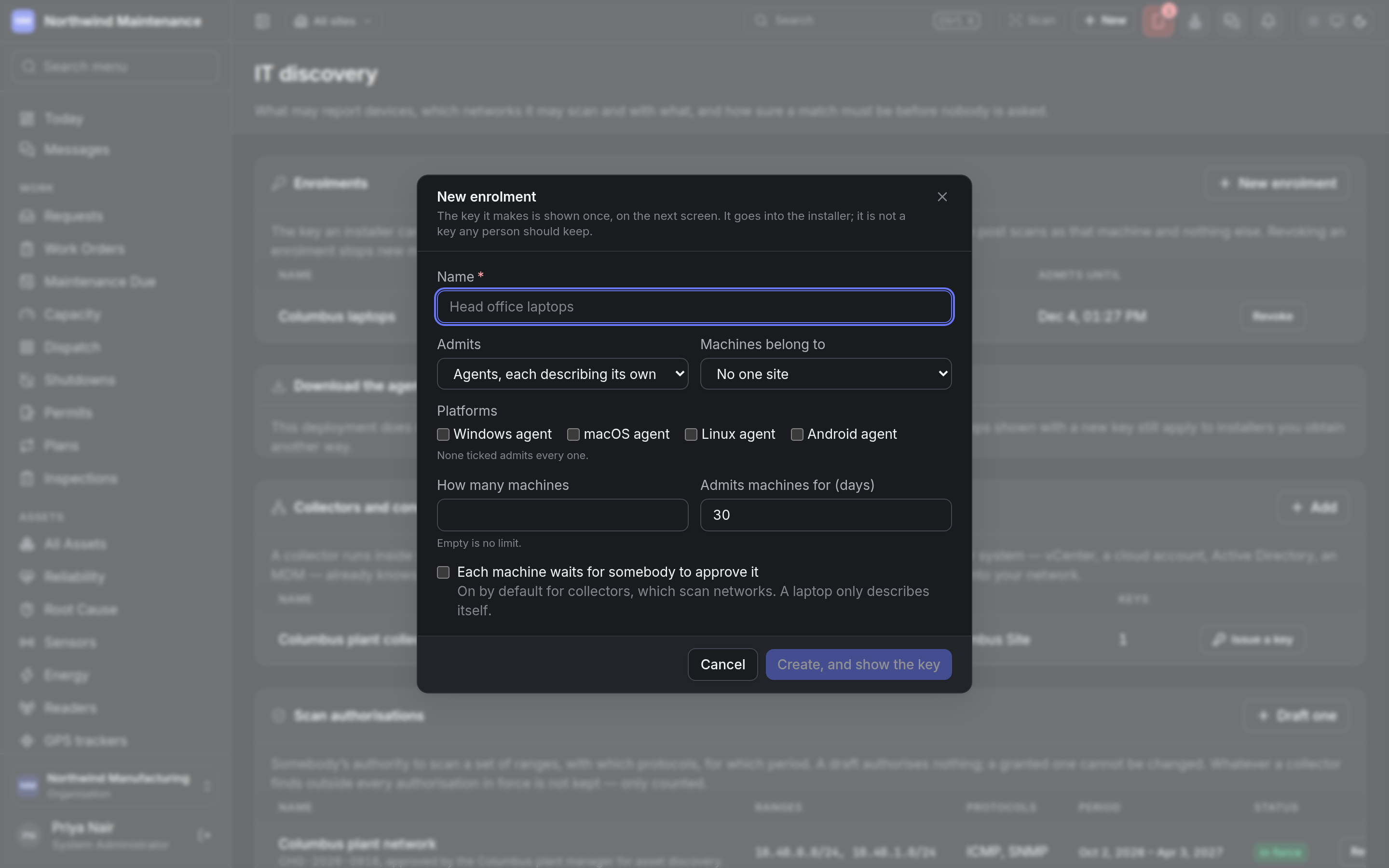

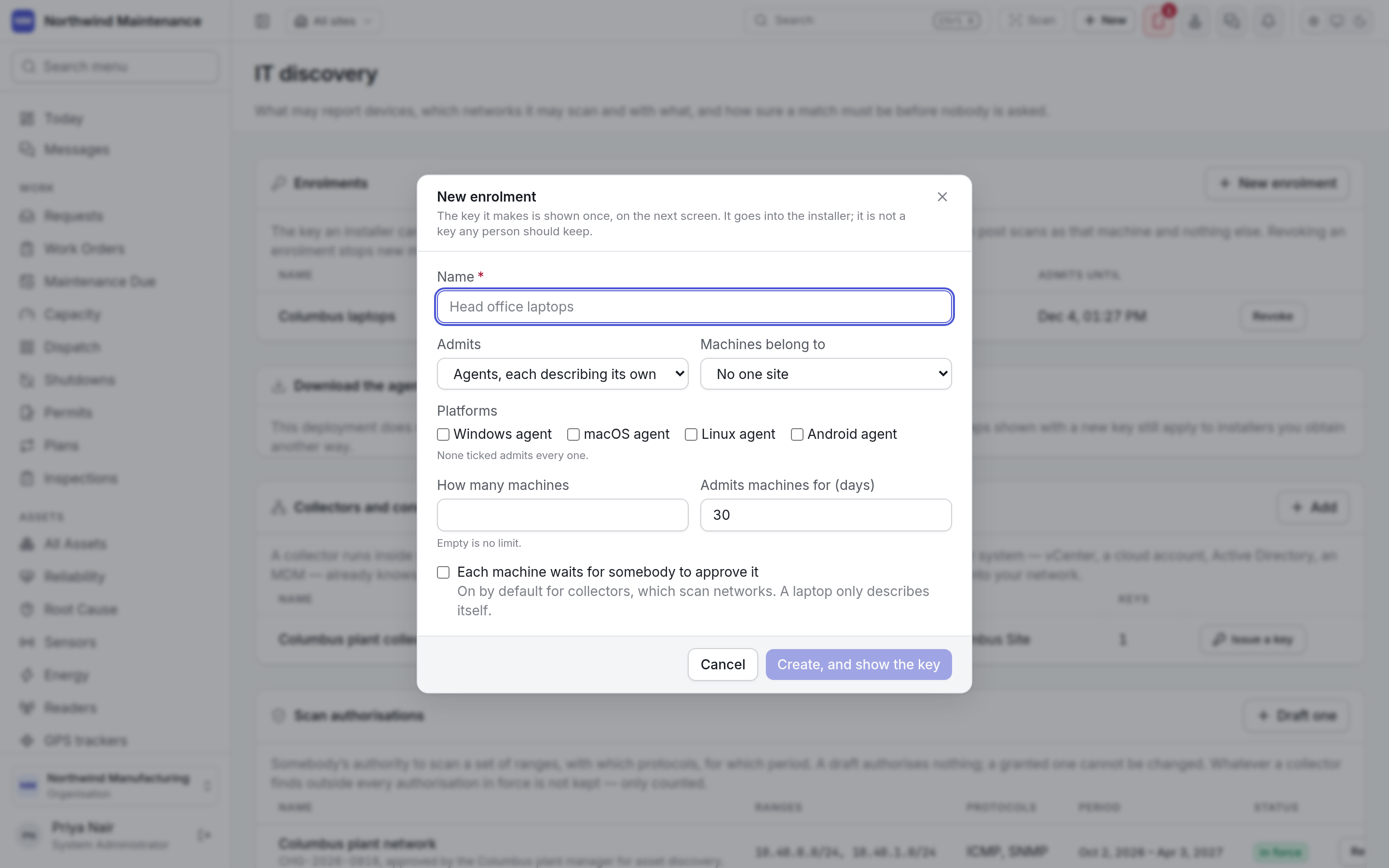

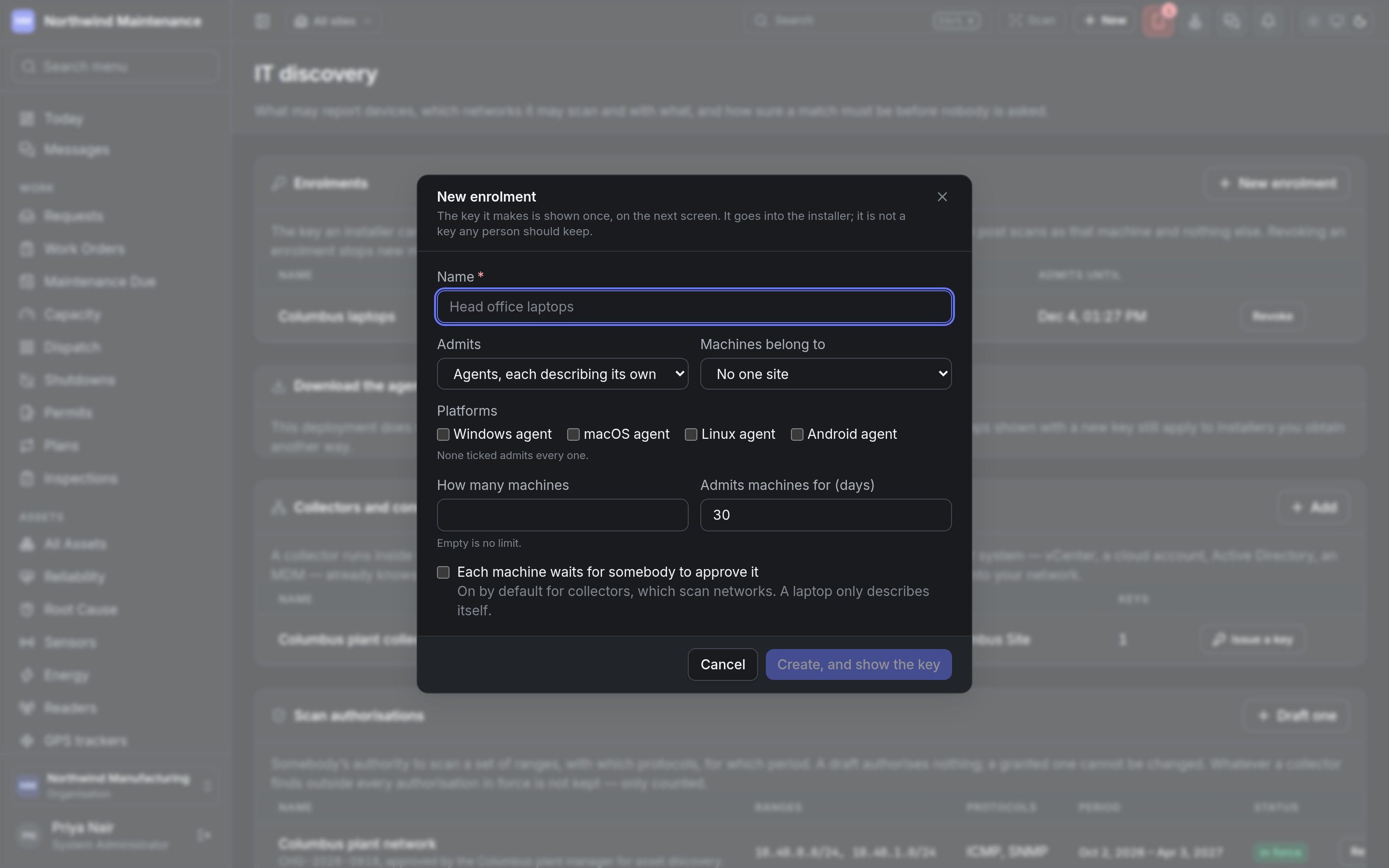

An enrolment is the key an installer carries. Each machine that runs the installer exchanges it once for a key of its own, which can post scans as that machine and nothing else. The list shows Name, Admits (agents or collectors, and the platforms), Enrolled (machines so far, out of the limit), Approval (straight in or waiting for approval) and Admits until. Revoke stops new machines enrolling with the key; machines already enrolled keep reporting. New enrolment opens the form. The key it makes is shown once, on the next screen, and goes into the installer — it is not a key any person should keep.

Field	What it means	Notes
Name	What the enrolment is for — “Columbus laptops”	Required
Admits	Agents, each describing its own machine or Collectors, each sweeping a network	Defaults to agents
Machines belong to	The site enrolled machines are placed at	No one site, or a site
Platforms	Windows agent, macOS agent, Linux agent, Android agent	None ticked admits every one
How many machines	The most machines the key can enrol	Empty is no limit
Admits machines for (days)	How long the key works	Defaults to 30
Each machine waits for somebody to approve it	A newly enrolled machine is held until approved	On by default for collectors, which scan networks; a laptop only describes itself

Download the agent and the collector explains where the installers come from. Where your deployment does not serve them, the install steps shown with a new key still apply to installers you obtain another way.

Collectors and connectors

A collector runs inside your network and sweeps the ranges it is authorised to. A connector reads what another system already knows — vCenter, a cloud account, Active Directory, a device manager. The list shows Name (and code), Platform, Site and Keys. Issue a key on a row creates the key that collector or connector uses; it is shown once. Add opens Add a collector or connector. It is active at once — you adding it is the approval.

Field	What it means	Notes
Platform	Network collector, VMware vCenter, Microsoft Hyper-V, Amazon Web Services, Microsoft Azure, Google Cloud, Network management system, Active Directory, Microsoft Entra ID and Intune, Jamf, Mosyle, Kandji, or Uploaded by hand	Defaults to network collector
Code	How it is named in a log line	Required; lower case
Name	Its name	Required
Site	The site it belongs to	No one site, or a site
Reports every (minutes)	How often it is expected to report	Defaults to 60. Twice this without a report and it shows as overdue

Scan authorisations

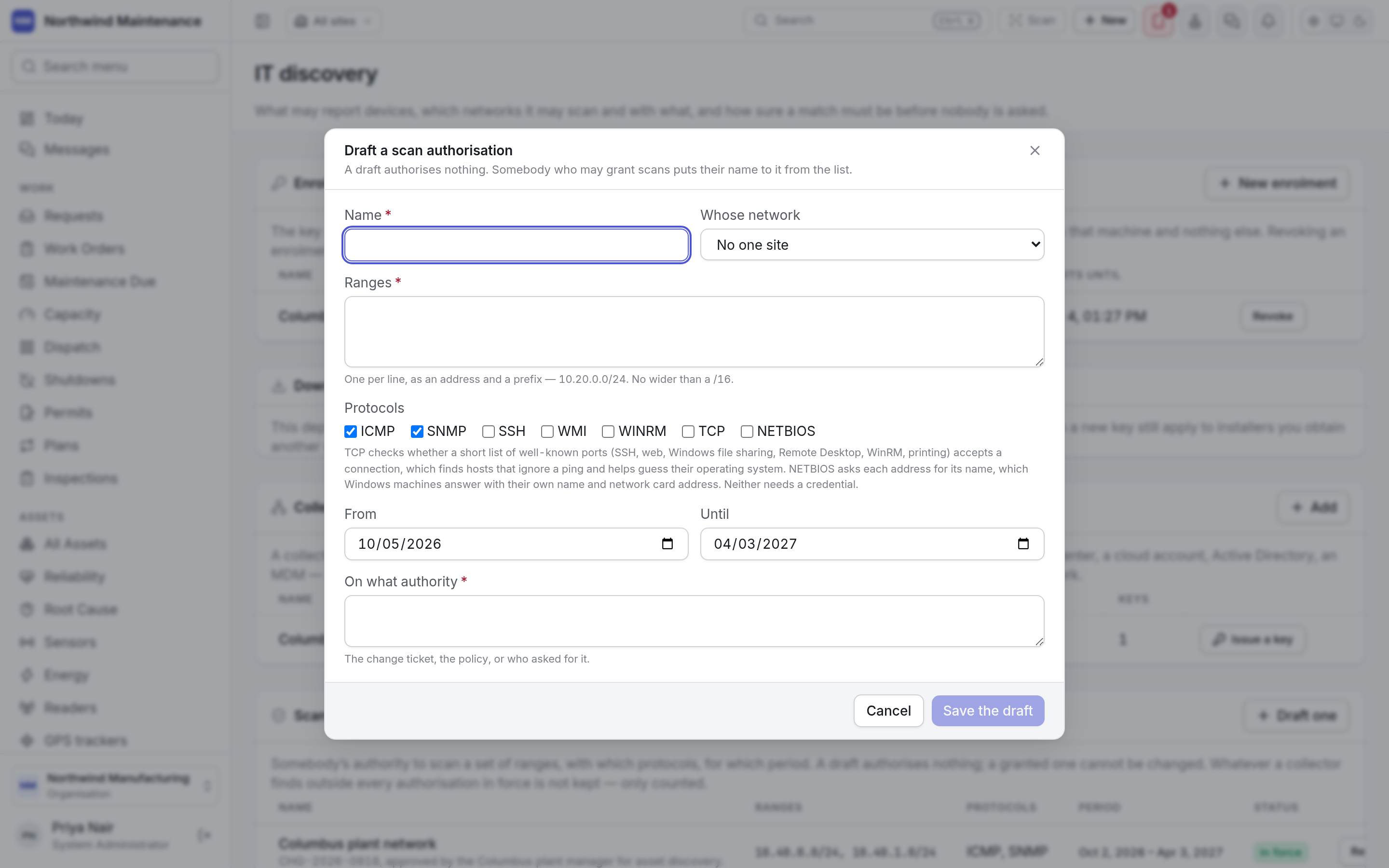

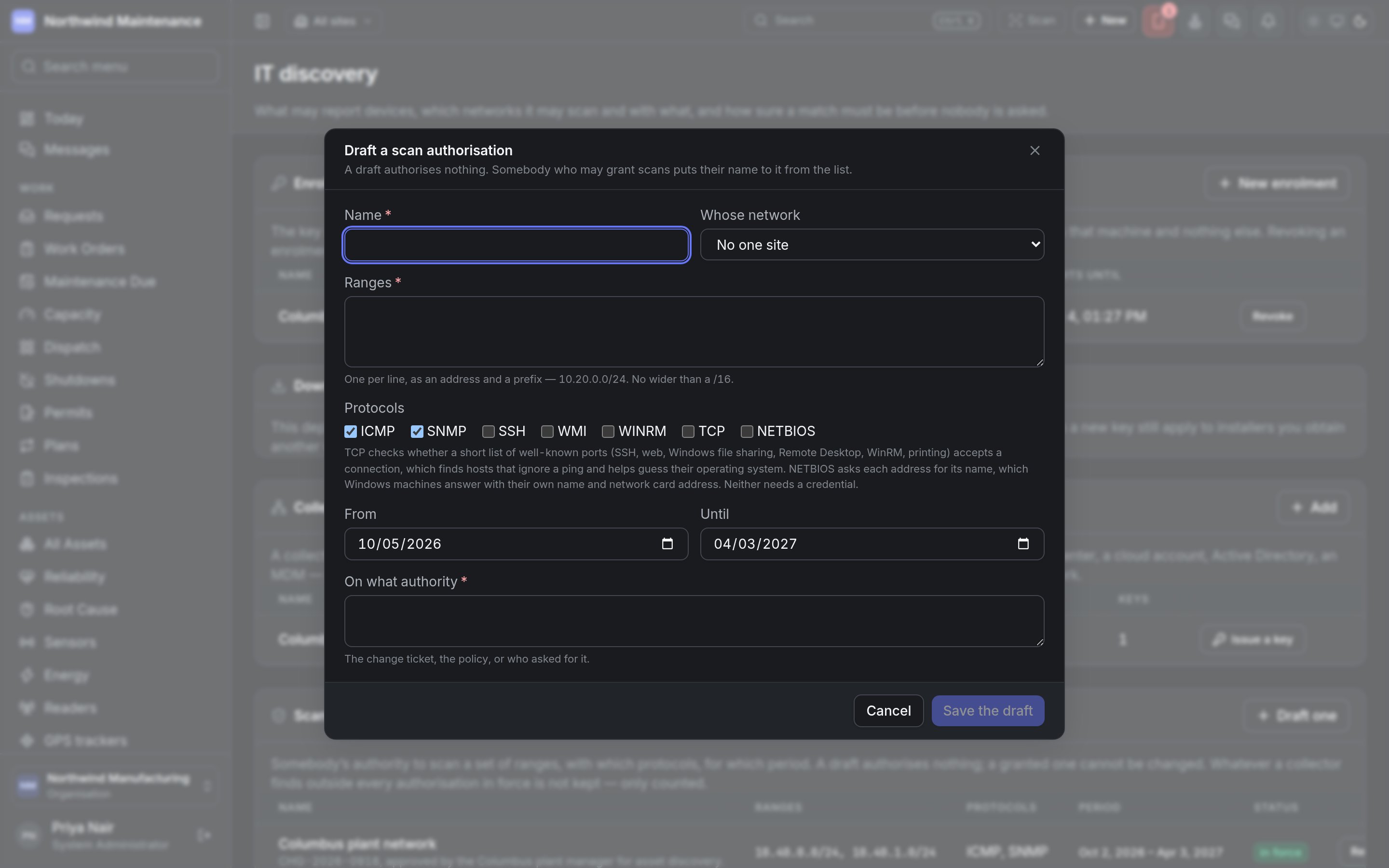

Somebody’s authority to scan a set of ranges, with which protocols, for which period. A draft authorises nothing; a granted one cannot be changed — a different set of ranges is a different authority, drafted and granted again. Whatever a collector finds outside every authorisation in force is not kept, only counted. The list shows Name (and the authority it was granted on), Ranges, Protocols, Period and Status (draft, in force, revoked). Somebody holding the grant permission puts their name to a draft with Grant; Revoke ends one in force. Draft one opens Draft a scan authorisation.

Field	What it means	Notes
Name	What the authorisation covers	Required
Whose network	The site whose network it is	No one site, or a site
Ranges	One per line, as an address and prefix — 10.20.0.0/24	Required. No wider than a /16
Protocols	ICMP, SNMP, SSH, WMI, WINRM, TCP, NETBIOS	ICMP and SNMP are ticked by default. TCP checks a short list of well-known ports to find hosts that ignore a ping; NETBIOS asks each address for its name. Neither needs a credential
From / Until	The period it is in force	Defaults to today and six months ahead
On what authority	The change ticket, the policy, or who asked for it	Required

Save the draft stores it.

Schedules

When a collector sweeps under an authorisation. The list shows Name, Collector, Authorisation, How often (with any time window) and Protocols. Schedule a sweep opens the form:

Field	What it means	Notes
Name	The schedule’s name	Required
Collector	Which collector sweeps	Required
Under	The authorisation in force it sweeps under	Required. No network can be scanned until one is granted
Protocols	The protocols to use	Only what the authorisation grants
Credentials to try, in order	The scanning credentials the collector tries	From scanning credentials
Every (minutes)	How often it runs	1440 is nightly; a short interval is continuous discovery
Only between	A start and end time	Local time on the collector. Empty is any time

Connectors

A connector reads an inventory another system already keeps, on a collector, with a credential that collector holds. It needs no scan authorisation, because it knocks on no addresses. The list shows Name, Collector, Settings, Credential and How often. Add a connector opens the form; nothing in it may be a secret.

Field	What it means	Notes
Reads	AWS instances, Azure virtual machines, Google Cloud instances, Intune managed devices or An NMS, EMS or other export	Required. Decides the fields below
Collector	Which collector runs it	Required. Add a collector first
Name	The connector’s name	Required
Regions, Role to assume, External id	Which AWS regions to read, an IAM role in another account, and the external id its trust policy asks for	For AWS. Empty regions reads every enabled region
Subscriptions	Subscription ids	For Azure. Empty reads every subscription the credential can see
Projects	Project ids, separated by commas	For Google Cloud
Directory (tenant) and Apps	The tenant id or domain, and whether to Include installed apps	For Intune. Apps take one request per device
Where the export is, Format, Where the list is, What they are, Recorded as, Which column holds what	An https or sftp address or a path on the collector; the file format; the path to the list of devices; the device class to use when the export does not say; and which of the export’s columns holds each identity	For an NMS or other export
Credential	Which credential the collector uses	AWS, Azure and Google Cloud can use the collector’s own identity where it runs in that cloud
Every (minutes)	How often it reads

Exclusions

Addresses no collector may touch even where an authorisation covers them — controllers that do not tolerate polling, equipment that is somebody else’s. The list shows Addresses, For, Why and Until. Exclude opens the form: Addresses (an address or a range with its prefix, required), For (every collector or one) and Why (required).

Scanning credentials

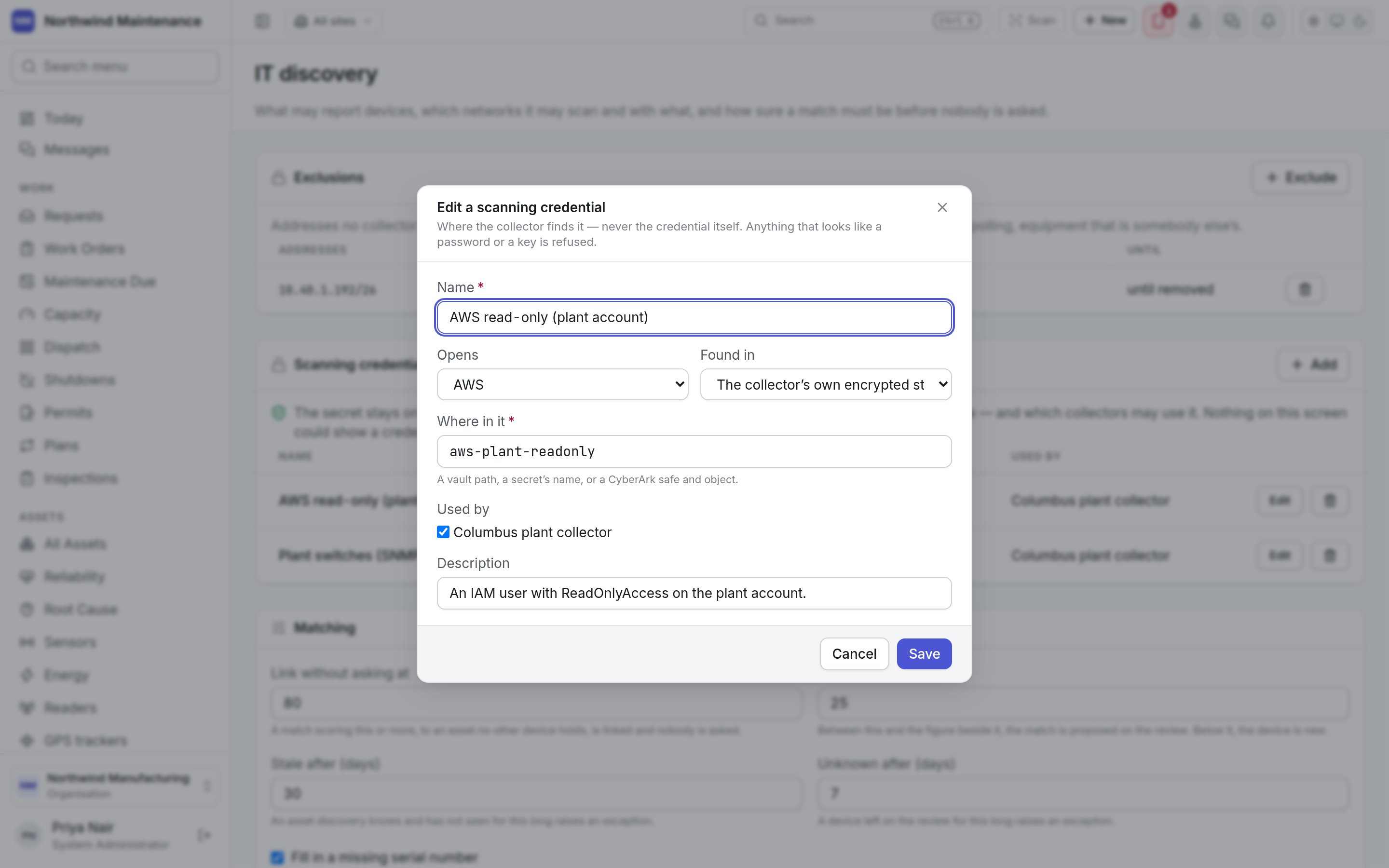

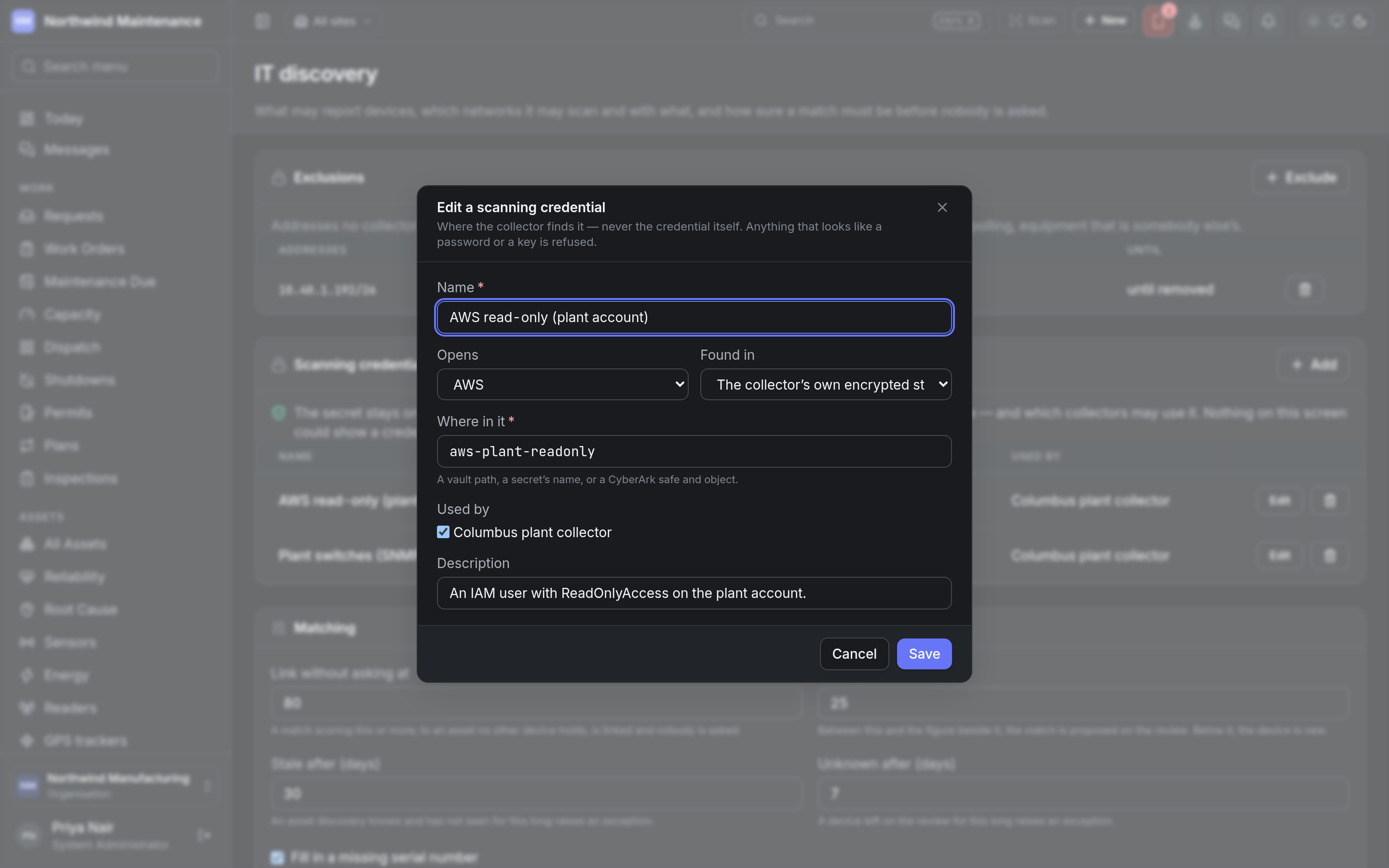

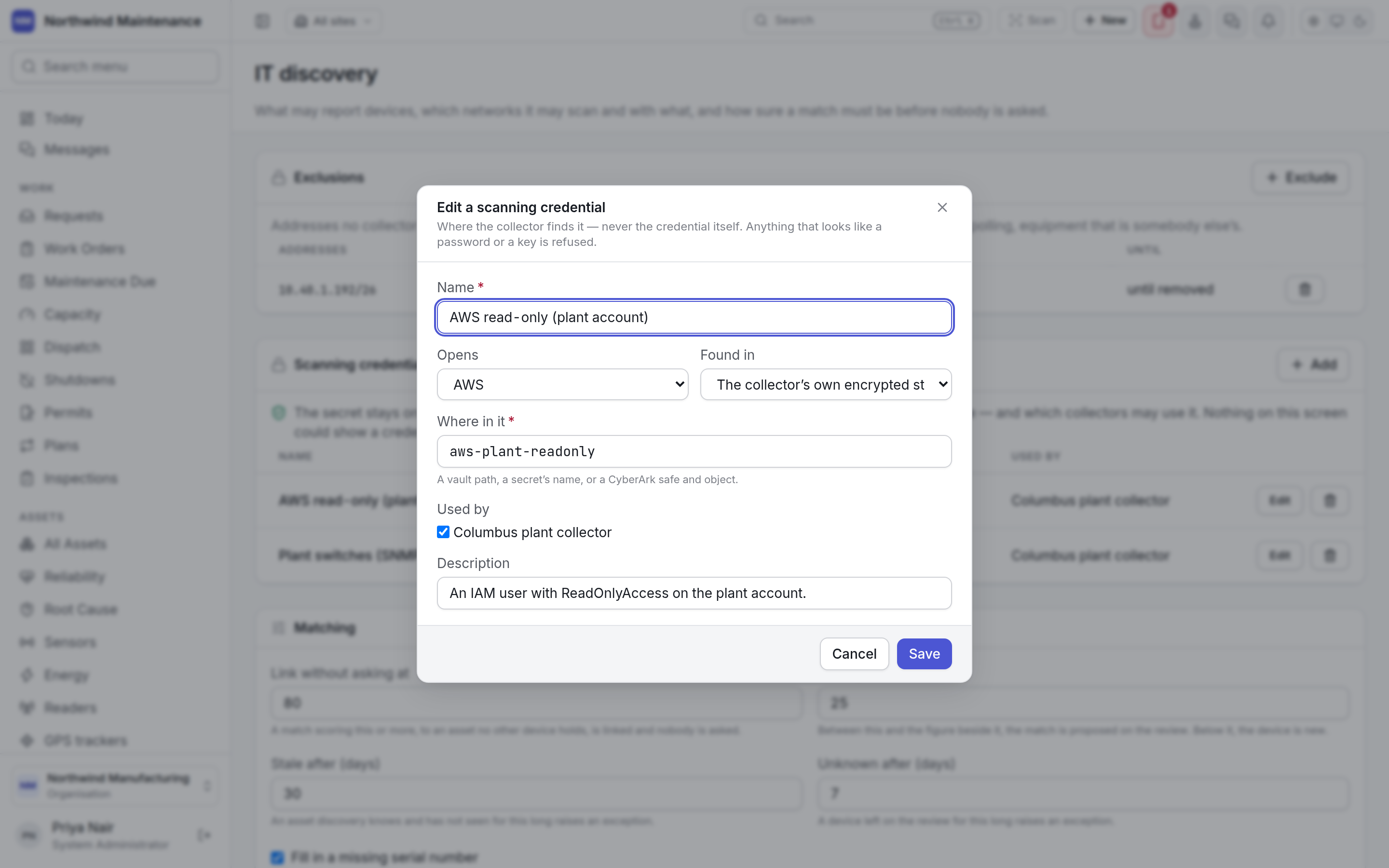

The secret stays on your side. What is kept here is where a collector finds it — a vault path, a secret’s name — and which collectors may use it. Nothing on this screen could show a credential, because none is ever sent here. The list shows Name, Opens, Found in, Used by and Edit.

Field	What it means	Notes
Name	The credential’s name	Required
Opens	SNMP V2C, SNMP V3, SSH, WMI, WINRM, VMWARE, HYPERV, AWS, AZURE, GCP, LDAP, GRAPH or NMS API	What it is used to reach
Found in	The collector’s own encrypted store, an environment variable on the collector, HashiCorp Vault, CyberArk or Windows Credential Manager
Where in it	A vault path, a secret’s name, or a CyberArk safe and object	Required. Anything that looks like a password or a key is refused
Used by	The collectors allowed to use it
Description	Notes

Matching

How sure a match must be before nobody is asked. Save keeps changes to these settings.

Setting	What it means	Default
Link without asking at	A match scoring this or more, to an asset no other device holds, is linked automatically	80
Ask a person from	Between this and the figure above, the match is proposed for review. Below it, the device is treated as new	25
Stale after (days)	An asset discovery knows and has not seen for this long raises an exception	30
Unknown after (days)	A device left on the review for this long raises an exception	7
Fill in a missing serial number	A linked device fills an asset’s empty serial. A serial somebody typed is never overwritten	On
Register new devices without review	Creates an asset automatically — only for a device a category rule recognises, at a known site, from the kinds of source ticked. It changes what the register is, so turning it on is recorded against your name	Off
Keep who last signed in to each device	The one thing discovery would know about a person. Used to suggest a custodian, never to set one. Turning it off forgets what was kept	Off

What counts as the same machine

Each agreeing identity adds its weight to a match, up to 100. The table lists every identity — cloud resource id, MDM device id, IMEI, Entra device id, serial number, virtual machine UUID, hardware UUID, network element id, directory object id, MAC address, host name, fully qualified name and IP address — with three settings:

Column	What it means
Weight	How much an agreeing value adds to the score
Disagreement rules it out	Two different values mean two machines — two different serial numbers, for example — so the match goes to a person however much else agrees
Used	Whether the identity is considered at all

Which category a new device goes in

The first rule a device satisfies proposes its category on the review, and is the category it is created in where automatic registration is on. A device no rule recognises is never created without a person. The list shows When, Category and Order. Add a rule opens the form:

Field	What it means	Notes
Category	The asset category the device goes in	Required
Reported by	Which kind of source reported it	anything, or one agent, collector or connector platform
Device class	What the device says it is — LAPTOP, SERVER, SWITCH, PRINTER
Operating system matches	A regular expression, ignoring case — `windows server`, `ios xe`
Order	Lower is tried first	Defaults to 100
